Circuit Breaker

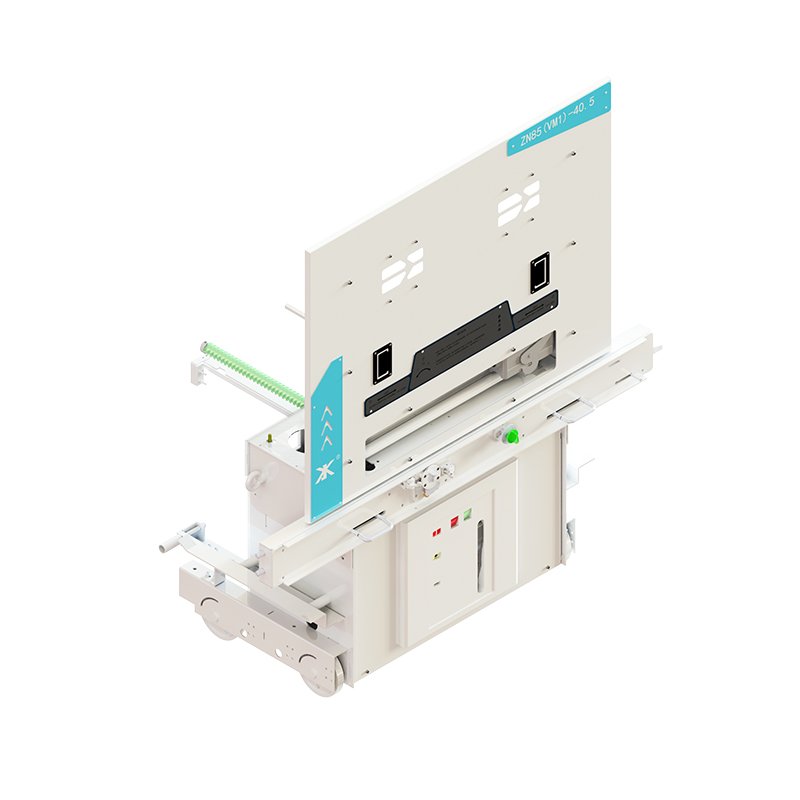

Vacuum circuit breaker (VCB) for primary metal-clad switchgear applications. Designed for 3.6-40.5 kV medium-voltage systems with comprehensive protection and control capabilities. Features high breaking capacity and reliable mechanical endurance.
Technical Parameters
| Parameter | Value |
|---|---|
| Rated Voltage | 3.6 kV – 40.5 kV |
| Type | Vacuum Circuit Breaker (VCB) |
| Mechanical Endurance | ≥ 10,000 operations |
| Application | Power plants, industrial facilities, utility networks |
| Standards | IEC 62271-200 / GB 3906 |
Key Features
- High breaking capacity for medium-voltage applications
- Reliable vacuum interrupter technology
- Comprehensive mechanical and electrical interlocking
- Compatible with standard VCB trolley widths (500/650/800/1000mm)
- 3-year warranty with free replacement for defects
For detailed specifications and custom solutions, please contact our team.
